# Updated RDP patch script for Windows 11 (post September 2024 update)
# Run as Administrator

# Stop RDP services
Write-Output "Stopping RDP services..."
Stop-Service UmRdpService -Force -ErrorAction SilentlyContinue
Stop-Service TermService -Force -ErrorAction SilentlyContinue

# Backup and take ownership
$termsrv_dll_path = "c:\windows\system32\termsrv.dll"
$termsrv_dll_acl = Get-Acl $termsrv_dll_path

Write-Output "Creating backup..."
Copy-Item $termsrv_dll_path "$termsrv_dll_path.backup_$(Get-Date -Format 'yyyyMMdd_HHmmss')"

takeown /f $termsrv_dll_path
$new_termsrv_dll_owner = (Get-Acl $termsrv_dll_path).owner
cmd /c "icacls $termsrv_dll_path /Grant $($new_termsrv_dll_owner):F /C"

# Read file as bytes
Write-Output "Reading termsrv.dll..."
$dll_as_bytes = Get-Content $termsrv_dll_path -Raw -Encoding byte
$dll_as_text = $dll_as_bytes.forEach('ToString', 'X2') -join ' '

# Multiple patterns for different Windows 11 versions
$patterns = @(
    @{
        name = "Pattern 1 (Old)"
        regex = [regex]"39 81 3C 06 00 00(\s\S\S){6}"
        patch = "B8 00 01 00 00 89 81 38 06 00 00 90"
    },
    @{
        name = "Pattern 2 (22H2/23H2)"
        regex = [regex]"39 81 3C 06 00 00(\s\S\S){6}"
        patch = "B8 00 01 00 00 89 81 38 06 00 00 90"
    },
    @{
        name = "Pattern 3 (24H2)"
        regex = [regex]"8B 99 3C 06 00 00 8B B9 38 06 00 00"
        patch = "B8 00 01 00 00 89 81 38 06 00 00 90"
    },
    @{
        name = "Pattern 4 (Latest 2024)"
        regex = [regex]"39 87 3C 06 00 00(\s\S\S){6}"
        patch = "B8 00 01 00 00 89 87 38 06 00 00 90"
    }
)

$pattern_found = $false
$dll_as_text_replaced = $null

Write-Output "Searching for patterns..."
foreach ($pattern in $patterns) {
    Write-Output "Checking $($pattern.name)..."
    $checkPattern = Select-String -Pattern $pattern.regex -InputObject $dll_as_text

    if ($checkPattern -ne $null) {
        Write-Output "Found $($pattern.name)! Applying patch..."
        $dll_as_text_replaced = $dll_as_text -replace $pattern.regex, $pattern.patch
        $pattern_found = $true
        break
    }
    elseif (Select-String -Pattern $pattern.patch -InputObject $dll_as_text) {
        Write-Output "The termsrv.dll file is already patched with $($pattern.name), exiting"
        Set-Acl $termsrv_dll_path $termsrv_dll_acl
        Start-Service UmRdpService -ErrorAction SilentlyContinue
        Start-Service TermService -ErrorAction SilentlyContinue
        Exit 0
    }
}

if (-not $pattern_found) {
    Write-Output "ERROR: No known pattern found in this version of termsrv.dll"
    Write-Output "This might be a newer version that requires manual analysis."

    # Save hex dump for manual analysis
    $hex_dump_path = "c:\temp\termsrv_hexdump_$(Get-Date -Format 'yyyyMMdd_HHmmss').txt"
    New-Item -ItemType Directory -Path "c:\temp" -Force -ErrorAction SilentlyContinue
    $dll_as_text | Out-File -FilePath $hex_dump_path
    Write-Output "Hex dump saved to: $hex_dump_path"
    Write-Output "Please analyze this file to find the new pattern."

    # Restore ACL and start services
    Set-Acl $termsrv_dll_path $termsrv_dll_acl
    Start-Service UmRdpService -ErrorAction SilentlyContinue
    Start-Service TermService -ErrorAction SilentlyContinue
    Exit 1
}

# Apply the patch
Write-Output "Applying patch..."
try {
    [byte[]] $dll_as_bytes_replaced = -split $dll_as_text_replaced -replace '^', '0x'
    Set-Content "$termsrv_dll_path.patched" -Encoding Byte -Value $dll_as_bytes_replaced

    Write-Output "Comparing files..."
    fc.exe /b "$termsrv_dll_path.patched" $termsrv_dll_path

    Write-Output "Replacing original file..."
    Copy-Item "$termsrv_dll_path.patched" $termsrv_dll_path -Force

    Write-Output "Restoring permissions..."
    Set-Acl $termsrv_dll_path $termsrv_dll_acl

    Write-Output "Starting services..."
    Start-Service UmRdpService -ErrorAction SilentlyContinue
    Start-Service TermService -ErrorAction SilentlyContinue

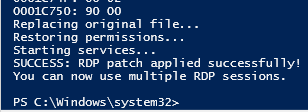

    Write-Output "SUCCESS: RDP patch applied successfully!"
    Write-Output "You can now use multiple RDP sessions."
}
catch {
    Write-Output "ERROR: Failed to apply patch: $($_.Exception.Message)"

    # Restore from backup if something went wrong
    if (Test-Path "$termsrv_dll_path.backup*") {
        $latest_backup = Get-ChildItem "$termsrv_dll_path.backup*" | Sort-Object LastWriteTime -Descending | Select-Object -First 1
        Copy-Item $latest_backup.FullName $termsrv_dll_path -Force
        Write-Output "Restored from backup: $($latest_backup.Name)"
    }

    Set-Acl $termsrv_dll_path $termsrv_dll_acl
    Start-Service UmRdpService -ErrorAction SilentlyContinue
    Start-Service TermService -ErrorAction SilentlyContinue
    Exit 1
}
